EdgeGLIDE+ Aluminium Sliding Doors

EdgeGLIDE+ sliding doors are a sleek inline aluminium sliding door system. Fully compliant with the latest building regulations Part L standards, they are a popular choice for residential new buildings, commercial installations, and property upgrades and renovations. Manufactured in-house for a completely bespoke sliding door.

  • Ultra-slim 35mm inter-lock
  • Modern square appearance
  • Attractive colour matched hardware
  • 70mm frame depth
  • 2.2m x 2.6m per panel
Get a Trade Quote

Product features

Design features

EdgeGLIDE+ aluminium sliding doors are made using ultra-slim 35mm interlocking panels. With a maximum size of 2.2m x 2.6m per panel, they are suitable for a wide range of applications. Wrap around glazing is used to boost performance and enhance appearance. Double and triple rail systems are available. And with a threshold height of just 48mm, they provide easy access without compromising weather resistance.

Product options

  • 48mm threshold height
  • 14mm – 36mm glazing thickness
  • Maximum panel weight 240kg
  • Class 4 air permeability
  • Class 7A water tightness
  • 2.2m x 2.6m maximum panel size
  • 2 rail frame depth 70mm
  • 3 rail frame depth 126mm
  • U-values as low as 1.2 W/m²K

Specifications

Threshold height

Glazing thickness

Glazing method

Glazing

Sightline (typical)

Frame depth

U-Value

Air permeability

Water tightness

Wind resistance

Enhanced security

Maximum acoustic insulation

2 Rail

48mm

14 - 36mm

Wrap-Around

Double or Triple

35mm

70mm

From 1.2 W/m²K

Class 4

Class 7A

Class C5

Multi-point locking

40 dB Rw

3 Rail

48mm

14 - 36mm

Wrap-Around

Double or Triple

35mm

126mm

From 1.2 W/m²K

Class 4

Class 7A

Class C5

Multi-point locking

40 dB Rw

Gallery

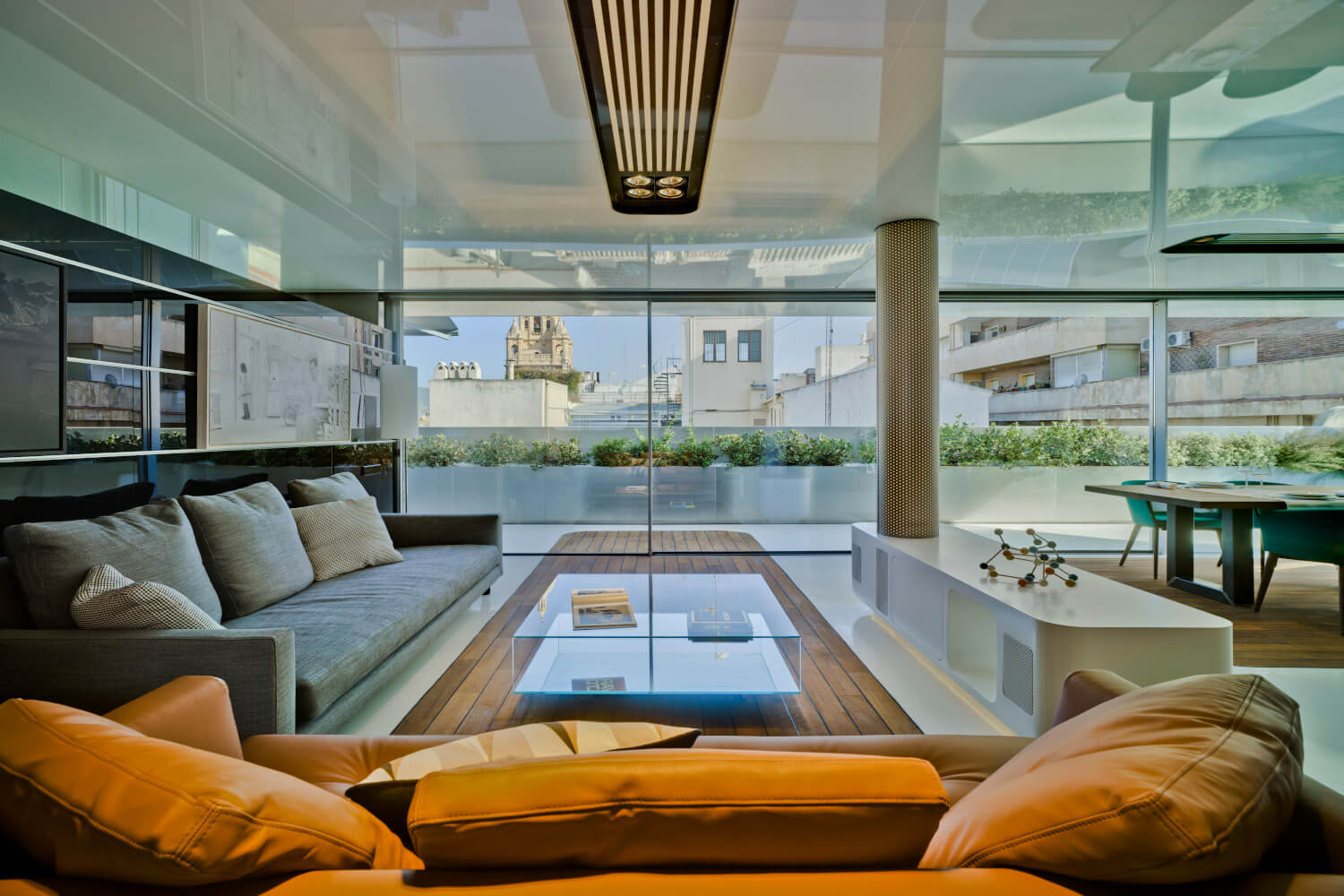

large sliding doors in lounge large white sliding doors in living room large white sliding doors Black sliding door White sliding doors on balcony

Downloads

EdgeGlide+ Inline Sliding Doors Download

Quantum’s own smooth sliding aluminium door system

EdgeGLIDE+ aluminium sliding doors are manufactured in-house at our own state-of-the-art facility. Using the latest innovations in technology, we have designed a sliding door system that combines sleek and stylish aesthetics with outstanding levels of performance. Fully customisable, the EdgeGLIDE+ sliding door system can be bespoke designed to incorporate a wide variety of high-tech features. At Quantum Windows, we work closely with glazing installers, architects, and developers to ensure that we can offer them the perfect aluminium sliding door systems for every installation.

Get a Quote
White sliding doors on balcony

Frequently Asked Questions

Can’t see the answer you’re looking for? View more answers here.

Contact Us

What are your lead times?

Lead times can vary per product. For stock PVCu colours we work to a 10-15 working day schedule. For more up to date lead times on any specific product e-mail us at sales@quantumwindows.co.uk where we will be happy to help.

Are your products compliant with new building regulations?

Our Eurocell PVCu range of products are fully compatible with all new build regulations. Quantum Windows has a number of secured by design certifications to provide you with peace of mind and our quality systems in place are all aimed at producing a quality product first time, every time.

Currently, our range of Aluminium double glazed Aluk 58BW HI Windows, Aluk 58BD HI Residential doors, EdgeGLIDE+ Sliding door and Unifold HI all have a U-value of 1.4 or below and are compliant with new building regulations. Our range of compliant products is always growing, so please give us a call for the most up to date information.

Please note that you will need to specify on your enquiry if you need your product to meet the new building regulations.

Where do you deliver to?

We deliver weekly to the West Midlands, Derbyshire, Leicestershire, Warwickshire, Oxfordshire, Berkshire, Surrey, West Sussex, East Sussex, Kent, Greater London, Hertfordshire, Essex, Suffolk, Cambridgeshire, Bedfordshire, Buckinghamshire. Norfolk and of course Northamptonshire.
